200 Class Medium Work ROV Systems

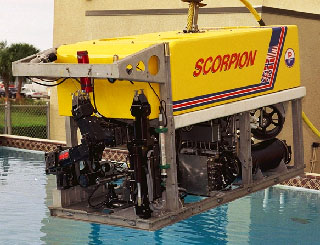

ScorpionŽ General Purpose Work System

The 75 shp SCORPIONŽ ROV system has proven to be successful in addressing the ROV market requirements for a high powered hydraulic work ROV in a smaller package. The SCORPIONŽ 's small size, high power and control flexibility allows the client to effectively address a wide range of applications and markets.

Applications

The SCORPIONŽ is designed to meet the needs of current and future application requirements in market areas including:

• Drilling Support
• Offshore Construction Support
• Pipe Survey and Installation Support
• Subsea Tool Deployment
• Deepwater Salvage

Specifications: (subject to change without notice)

• Depth capability: 1,000 meters (Optional deeper depth available)
• Max. Speed at Operating Depth
•
  • Forward: 3.0 knots
  • Vertical: 1.0 knot
  • Lateral: 1.7 knots
  • Turning Rate: 40 deg. per second minimum
• Vehicle Dimensions:
•
  • Height: 144 cm (57 in.)
  • Width: 114 cm (44 in.)
  • Length: 203 cm (80 in.)
  • Weight in air: 1,367 kg. (3,010 lbs)
• Payload Capability: 204 kg (450 lbs)(minimum in seawater for base vehicle)
• Propulsion System:
•
  • (1) SCORPIONŽ 75 shp Electro hydraulic power unit.
  • 2,400 Vac, 3-phase, 60 Hz
